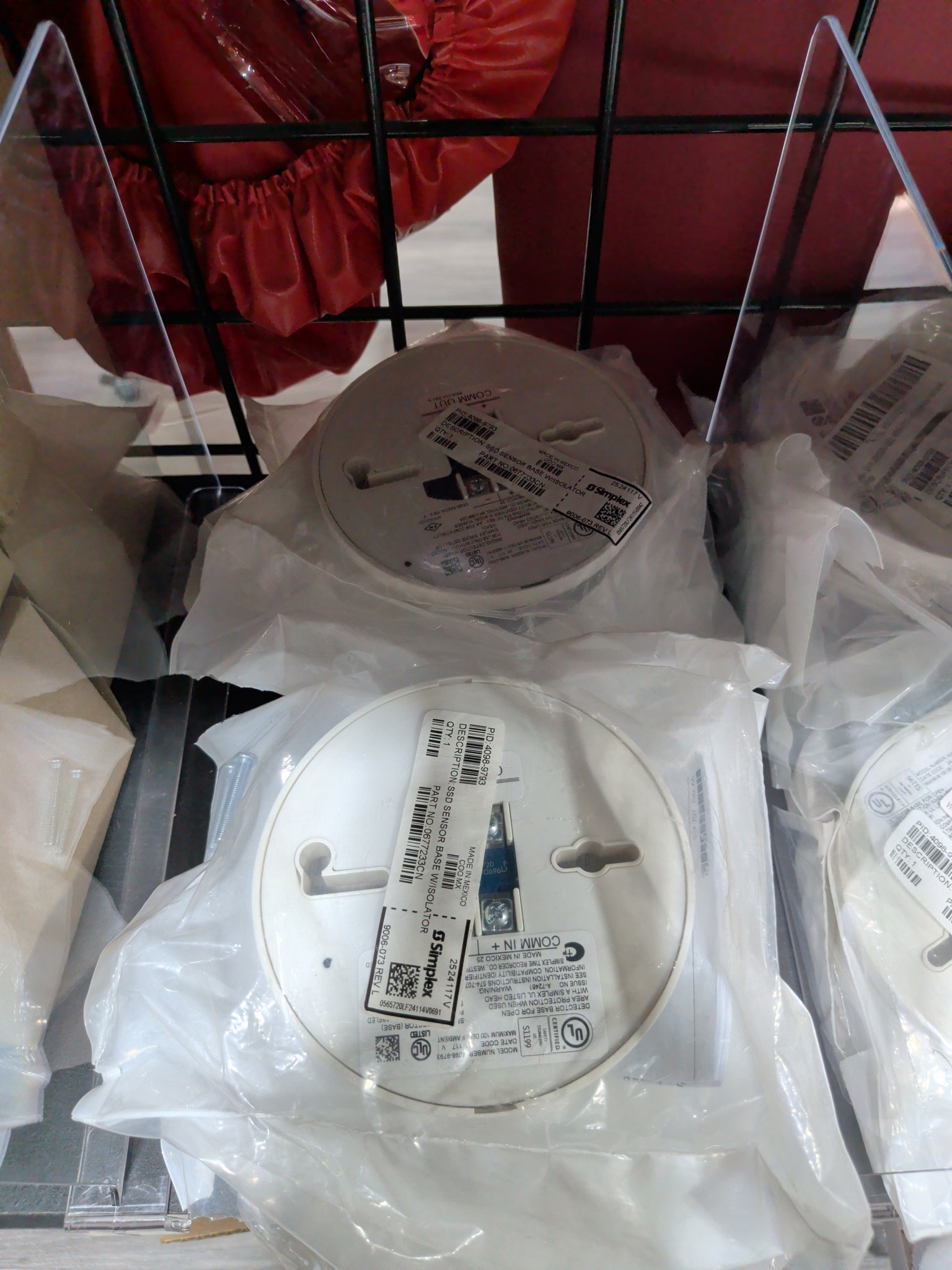

Isolator base for TrueAlarm analog sensorsusing IDNet addressable communications:
- Compatible with Simplex® 4007ES, 4008, 4010,
4010ES, 4100ES, or 4100U Series fire alarm control
panel IDNet Signaling Line Circuits (SLCs) providing:
IDNet, IDNet+, IDNet 1+, IDNet 2, or IDNet 2+2 output
loops (see additional information on pages 2 and 3) - Can be installed up to 250 total allowing isolation
directly to the device level (200 total with 4008) - Operation is for ceiling or wall mounting
- Base mounted LED indicates sensor status
- Designed for EMI compatibility
- UL listed to Standard 268; ULC listed to Standard S529
Short circuit wiring isolation:
Input is automatically separated from output when an output communications short circuit occurs
Earth fault isolation reduces time to fix wiring problems:
Built-in control panel diagnostics assist in locating earth fault conditions – the most common installation wiring problem

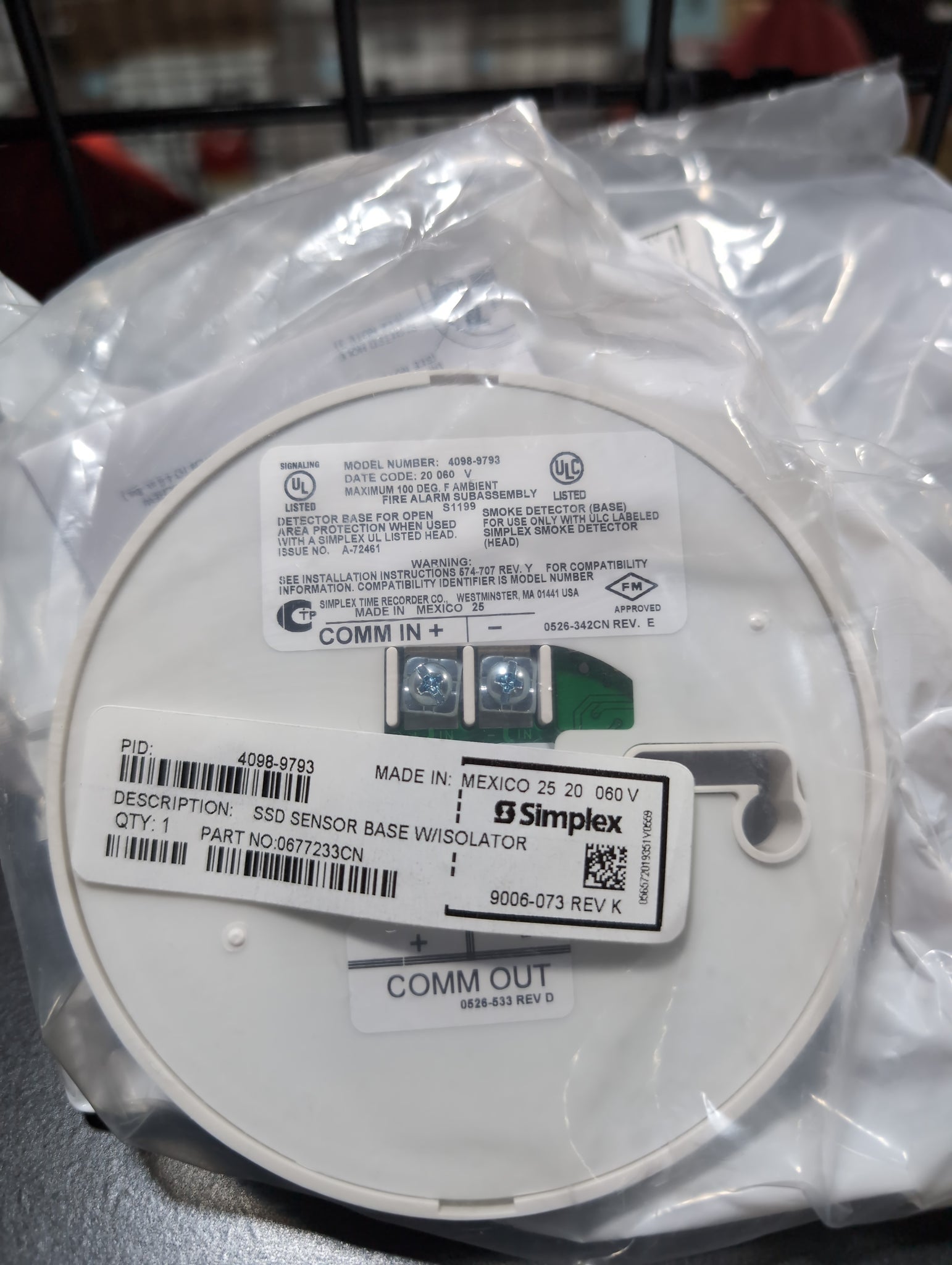

Isolator base 4098-9793 is compatible with:
- Photoelectric sensor model 4098-9714
- Heat sensor model 4098-9733
- Multi-sensor model 4098-9754
For Class B or Class A wiring:
Communications are received from either input or output allowing bases with Class A wiring to isolate short circuits while still operating their sensors
